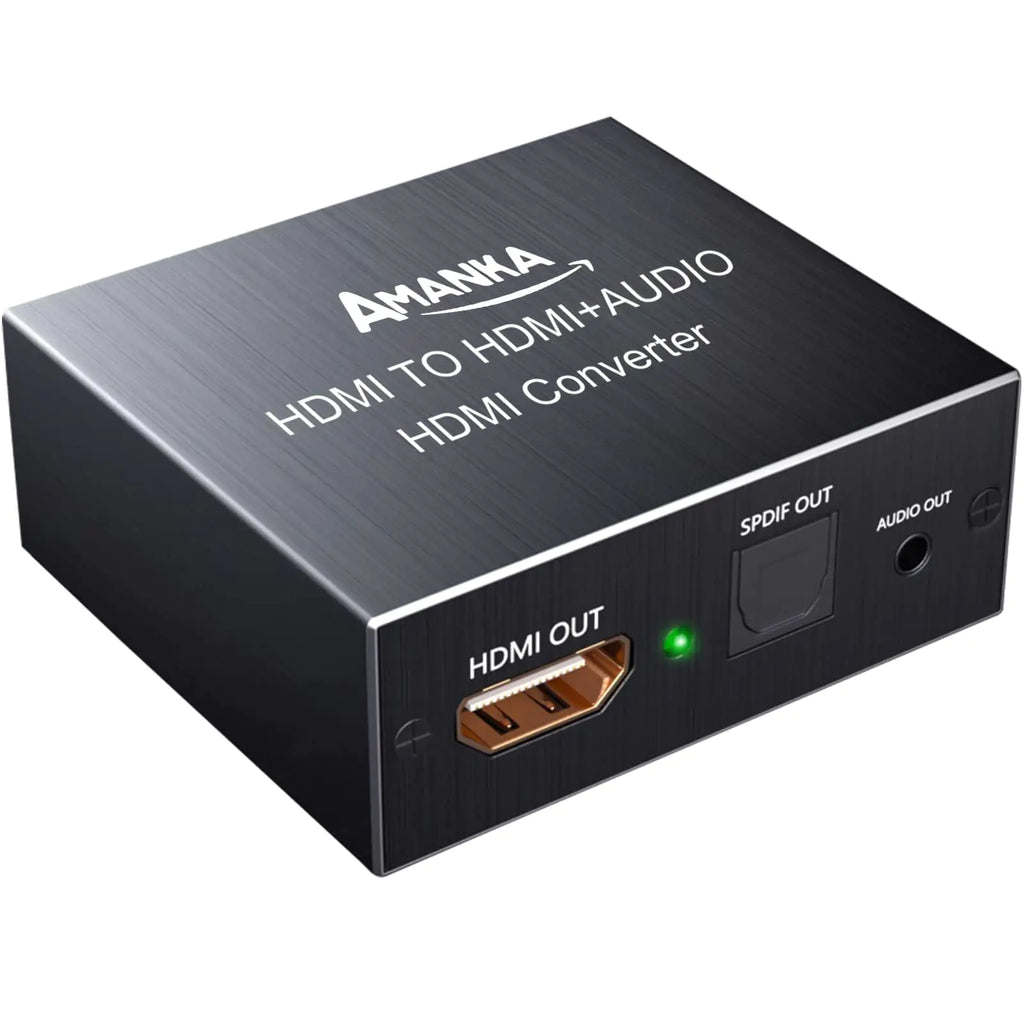

AMANKA HDMI Audio Extractor 4K with Optical & 3.5mm

Important: For optimal performance, connect the HDMI Audio Extractor directly to your HDMI signal source and display using HDMI cables without adapters like HDMI/DVI or HDMI/VGA.

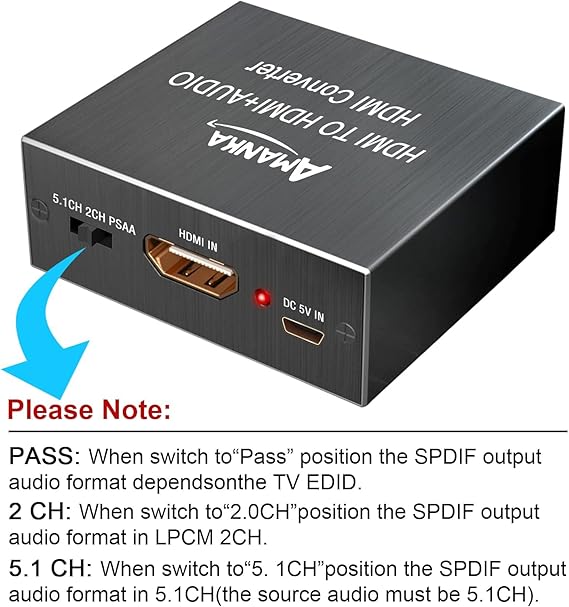

Switch: Audio Mode Selector Pass: In HDMI Pass mode, both audio and video signals output through HDMI with no SPDIF or L/R output. - 2 Channel Mode: Outputs stereo audio through HDMI, SPDIF, and L/R.- 5.1 CH Mode: Outputs 5.1 channel audio via HDMI/SPDIF, with L/R disabled.

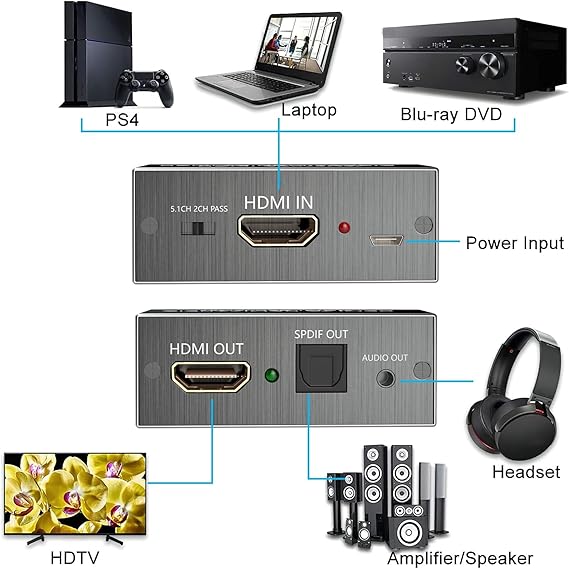

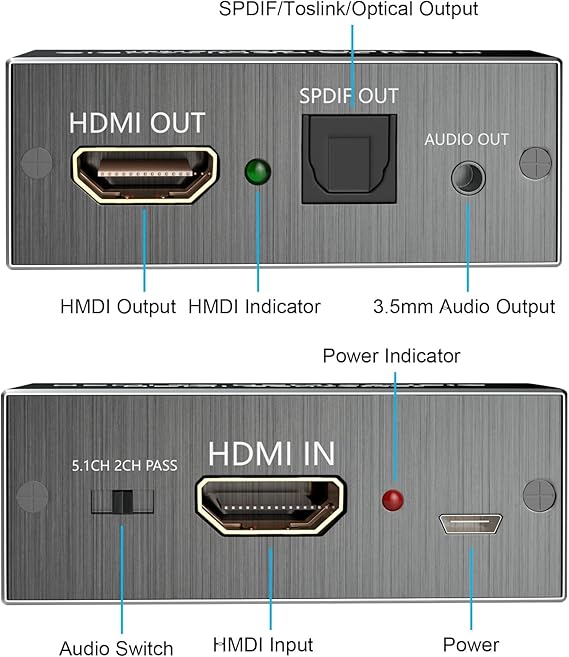

Features: • Converts one HDMI input to an HDMI output with additional audio. • Input Ports: 1 x HDMI, 1 x Micro-USB power, 3 x Audio EDID settings (Pass/2-Channel/5.1-Channel) • Output support: SPDIF and R/L audio. • Outputs: 1 x HDMI, 1 x SPDIF (optical), 1 x 3.5mm jack• Resolution Input: Up to 4Kx2K/60Hz, 1080p/60Hz, 3D/24Hz.• Synchronizes audio signal separation with HDMI.• Input cable support up to 15m AWG26 HDMI standard, with output up to 20m AWG26 without quality loss.• Supported video color format: 24bit/Deep Color• SPDIF output format: PCM, AC3, DTS 5.1, Dolby Digital• HDMI output format supports all formats including Dolby Digital Plus, PCM5.1CH and above• Max. Bandwidth: 225MHz• Max. Data Rate: 6.75Gbps• Max. Working Current: 190mA

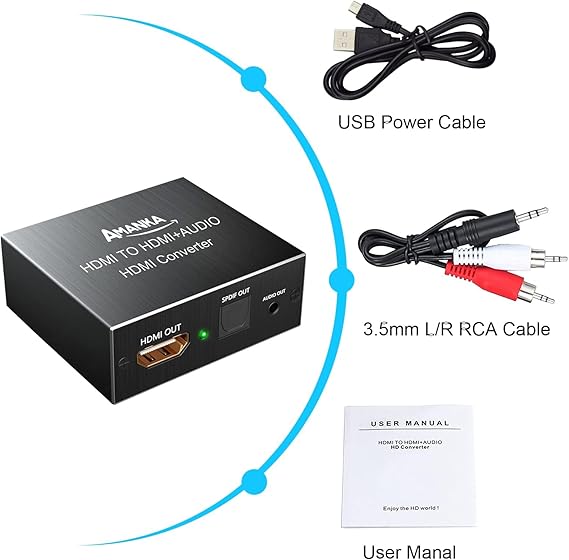

Package Includes:• Main unit x 1• 3.5mm R/L Audio Cable x 1• Micro-USB Cable x 1• User Manual (possibly not in German) x 1
